The valve is used in industrial, agricultural and water line systems, potable water, pump stations for non-corrosive liquids with maximum temperature of 80 C

• Drilling and dimension of flanges according to EN 1092-2 and other standards upon request
• The minimum pressure for sealing 0.5 bar

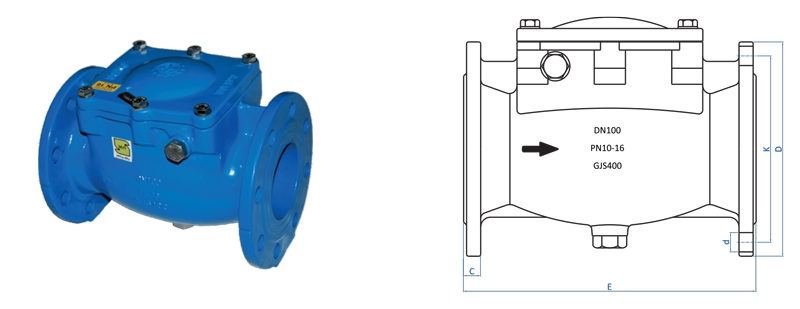

• Flanges face-to-face length according to EN 558-1 series F6 / DIN3202-1
• Body made of ductile iron EN1563(GJS400)
• Disk made of ductile iron volcanized with EPDM/NBR rubber according to DIN53538-5
• Inside and outside surfaces of ductile iron parts covered with a minimum of 250 micron epoxy electrostatic method coating according to DIN30677
