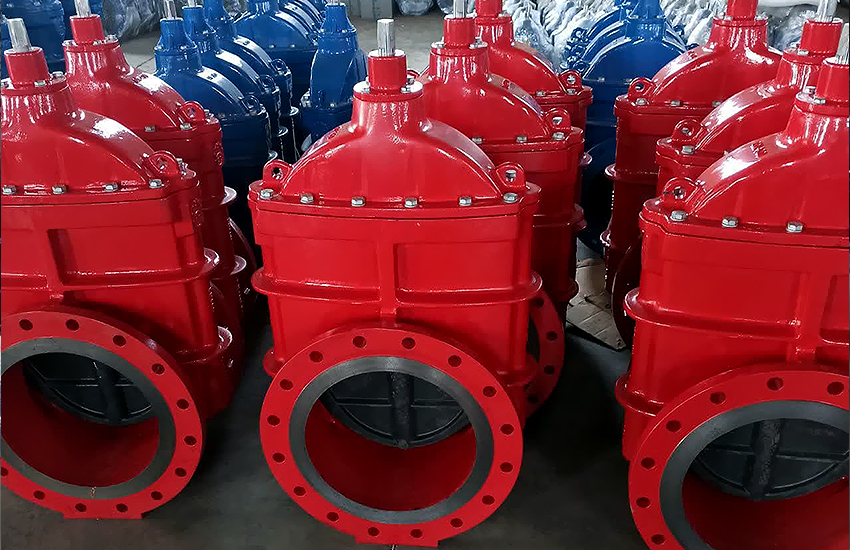

The valve is used in industrial and constructional fields for on/off purposes of drinking water and noncorrosive liquids with maximum temperature of 80 C.

• • The valve parts, spindle disposition mechanism and sealing uniquely designed by AICC.
  • Easy service with no need to detach the valve from the water line system
  • Suitable for underground systems as heavy-duty valve
  • Designed and manufactured according to DIN3352-4 and ISIRI3363
  • Flanges drilled according to EN 1092-2 and other standards upon request
  • Flanges face-to-face length according to (EN558-1) Series 14, 15 / (F4, F5) DIN3202-1
  • Body, wedge and bonnet made of ductile iron EN1563(GJS400)
  • Wedge rubberized all over with EPDM/NBR according to DIN53538-5
  • Spindle made of stainless steel 1.4021 according to DIN17440 with rolled thread and ultra-burnished sealing surface. Stem and thrust collar are integrated series.
  • Inside and outside surfaces covered with a minimum of 250micron epoxy electrostatic paint coating according to DIN30677
  • Sizes DN50 to DN600 from series F4 and DN50 to DN300 from series F5 are available
