• The valve is used in industrial, agricultural and water line system, potable water, pump station with maximum temperature of 80oC.
• Easy installation and maintenance, low pressure drop.
• Full bore valve
• Self-cleaning property due to continuous movement of the ball.
• Excellent resistant to erosion and corrosion.

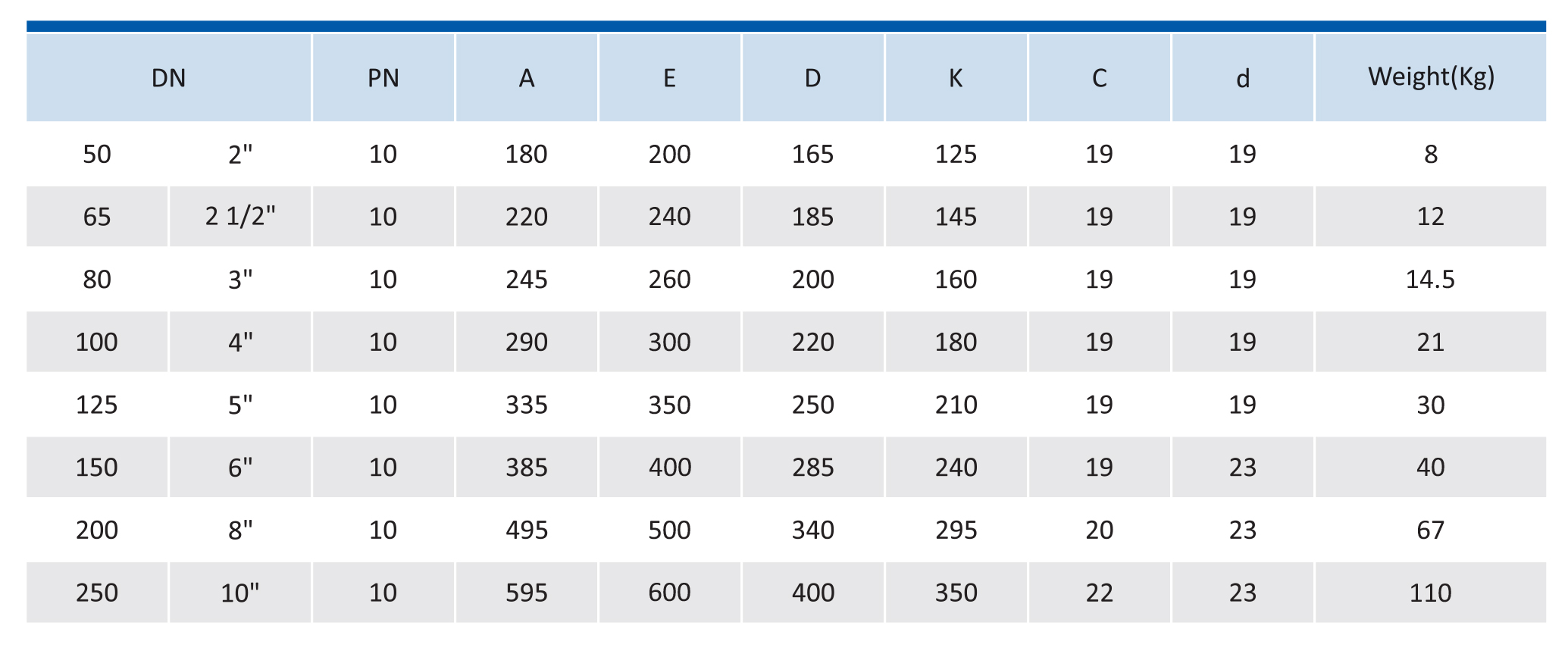

• Drilling and dimension of flanges according to (EN558-1) DIN3202-1
• The minimum pressure for sealing 0.5 Bar
• Body mad of ductile iron EN1563 (GJS400)
• Ball made of Aluminum volcanized with EPDM/NBR according to DIN53538-5 resistant against friction and hammer effect.
• Stainless steel filter AISI304 according to DIN17440 with 5mm diameter of hole.
• Inside and outside surfaced of body with a minimum of 250micron epoxy electrostatic method coating according DIN30677
