The valve is used in industrial, agricultural and water line systems, potable water, pump stations, municipal and industrial sewage for non-corrosive liquids with maximum temperature of 80 C

• This valve is exclusively designed by AICC to provide op mum service and opera on
• Usable vertically or horizontally (Minimum pressure need for sealing in horizontal status 0.5 Bar)
• Self-cleaning property due to continuous movement of the ball

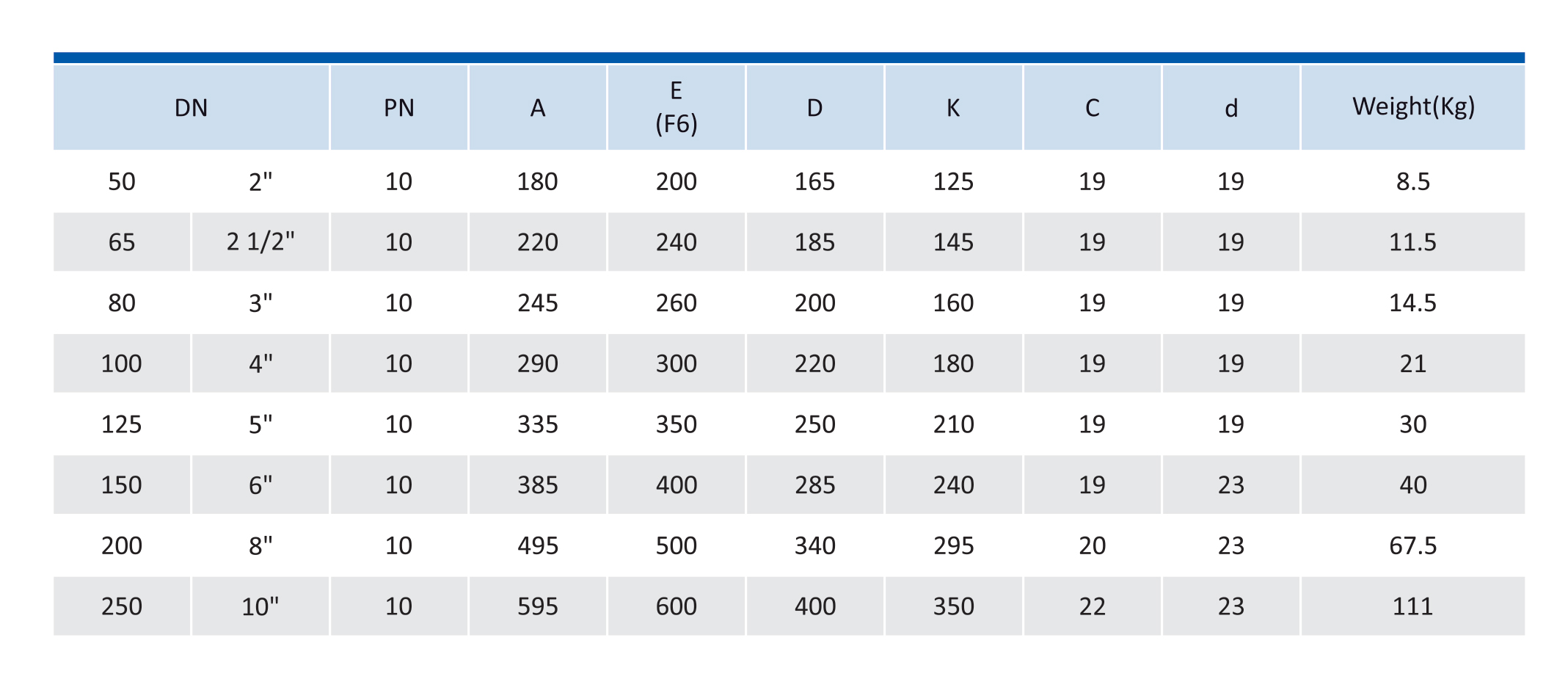

• Drilling and dimension of flanges according to EN 1092-2 and other standards upon request
• Flanges face-to-face length according to (EN558-1) series F6 / DIN3202-1
• The minimum pressure for sealing 0.5 Bar

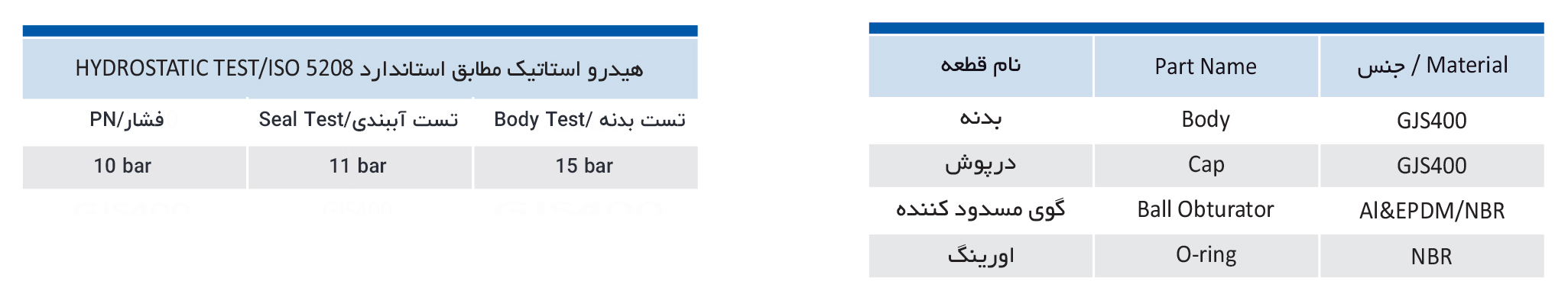

• Body made of ductile iron EN1563(GJS400)
• Disk made of ductile iron volcanized with EPDM/NBR rubber according to DIN53538-5
• Inside and outside surfaces of ductile iron parts covered with a minimum of 250 micron epoxy electrostatic method coating according to DIN30677
• When installing valve, attention should be paid to the direction of arrow on the body.
